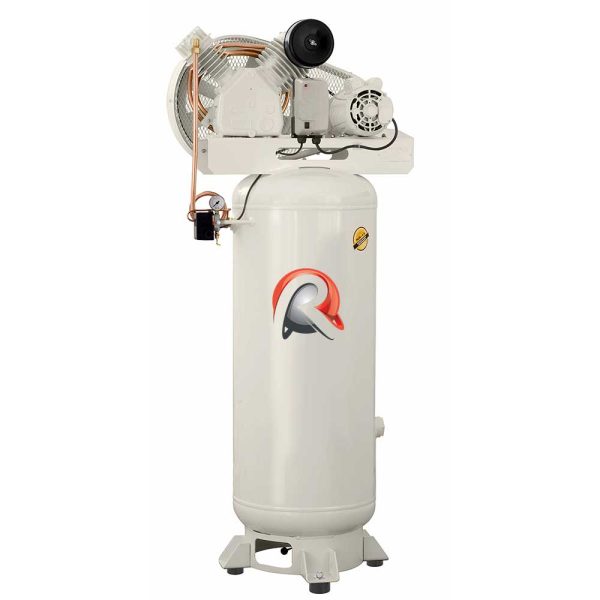

Vertical 5HP Two Stage OL-050-060V-V20

Oil Less
SKU: OL-050-060V-V20
Tags:

Description

Vertical 5HP Two Stage OL-050-060V-V20

The Oil Less compressors offer performance and safety for applications in clinics, offices or critical industrial processes. These products adhere to a higher air quality standard starting with their air tanks which have internal antibacterial powder coating. Available in 3, 5, 10 and 15 hp sizes, these compressors ensure durability. Choose the best product to support your business.

The Pump – Oil Less V20

Air Displacement (CFM)20
Air Displacement (l/min)566
Motor Power (hp)5
Motor Power (kW)3.7
Maximum Operating Pressure (bar)8.3
Maximum Operating Pressure (PSI)120
Minimum Operating Pressure (bar)5.5
Minimum Operating Pressure (psi)80
Compressor Unit – No. Stages2
Compressor Unit – No. Pistons2-V

Additional information

Weight 440 lbs
Dimensions 32.3 × 19.7 × 72.8 in
Air Displacement (CFM)

CFM @ Max PSI (FAD)

Motor Power (hp)

Maximum Operating Pressure (PSI)

Tank Orientation

Tank Size (gal)

Voltage (V)

Stages

Pistons

Pump RPM
