Horizontal 5HP Two Stage OL-050-060H-V20
- Description
- Additional information
Description

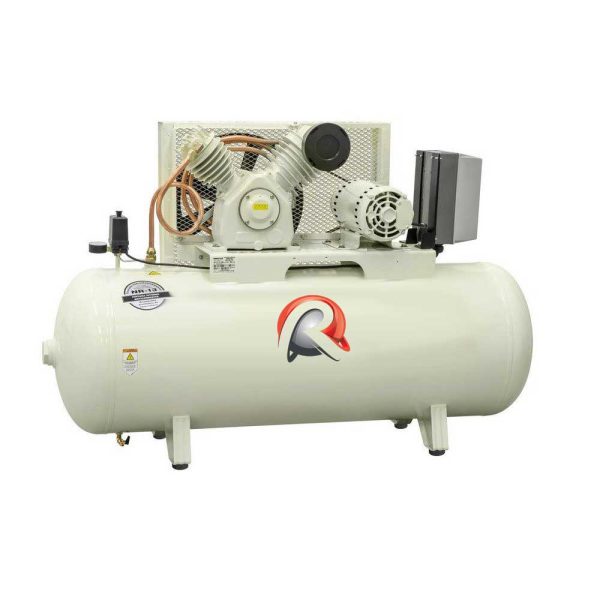

Horizontal 5HP Two Stage OL-050-060H-V20
The Oil Less compressors offer performance and safety for applications in clinics, offices or critical industrial processes. These products adhere to a higher air quality standard starting with their air tanks which have internal antibacterial powder coating. Available in 3, 5, 10 and 15 hp sizes, these compressors ensure durability. Choose the best product to support your business.
The Pump – Oil Less V20
| Air Displacement (CFM) | 20 |
|---|---|
| Air Displacement (l/min) | 566 |
| Motor Power (hp) | 5 |
| Motor Power (kW) | 3.7 |
| Maximum Operating Pressure (bar) | 8.3 |
| Maximum Operating Pressure (PSI) | 120 |
| Minimum Operating Pressure (bar) | 5.5 |
| Minimum Operating Pressure (psi) | 80 |
| Compressor Unit – No. Stages | 2 |
| Compressor Unit – No. Pistons | 2-V |
Additional information
| Weight | 440 lbs |
|---|---|
| Dimensions | 66.9 × 21.3 × 40.6 in |
| Air Displacement (CFM) | |
| CFM @ Max PSI (FAD) | |
| Motor Power (hp) | |
| Maximum Operating Pressure (PSI) | |
| Tank Orientation | |
| Tank Size (gal) | |
| Voltage (V) | |
| Stages | |
| Pistons | |
| Pump RPM |
