Description

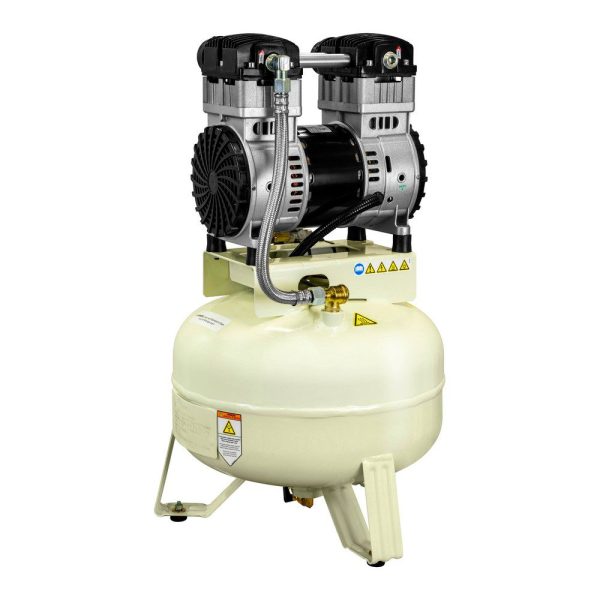

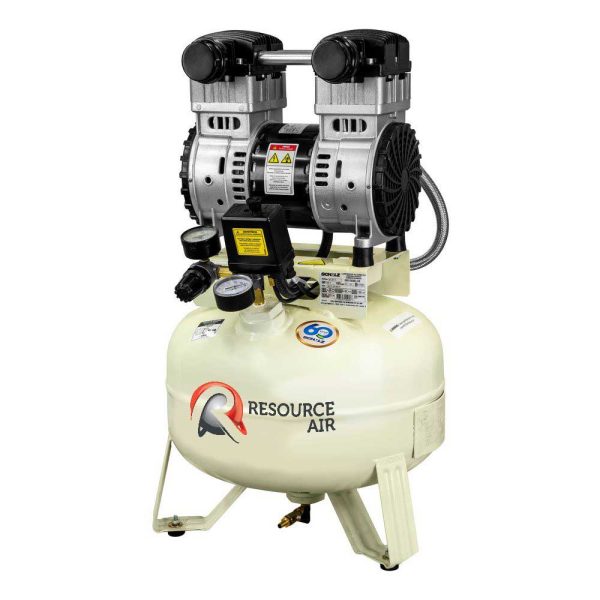

Oil Less 1.5HP 8 Gallon OL-01-080-D9

The Oil Less single stage direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and air tanks with internal antibacterial powder coating. These durable compressors are available in the models of 1, 1.5, 2 and 3 hp. Choose the best product to support your needs.

The Pump – Oil Less CSD 9

Oil Less CSD 9
Air Displacement (CFM)9
Air Displacement (l/min)255
Motor Power (hp)1.5
Motor Power (kW)1.1
Maximum Operating Pressure (bar)8.3
Maximum Operating Pressure (PSI)120
Minimum Operating Pressure (bar)5.5
Minimum Operating Pressure (psi)80
Compressor Unit – No. Stages1
Compressor Unit – No. Pistons2

Additional information

Weight 88 lbs
Dimensions 17.3 × 17.3 × 26.4 in
Air Displacement (CFM)

CFM @ Max PSI (FAD)

Motor Power (hp)

Maximum Operating Pressure (PSI)

Tank Orientation

Tank Size (gal)

Voltage (V)

Stages

Pistons

Pump RPM
