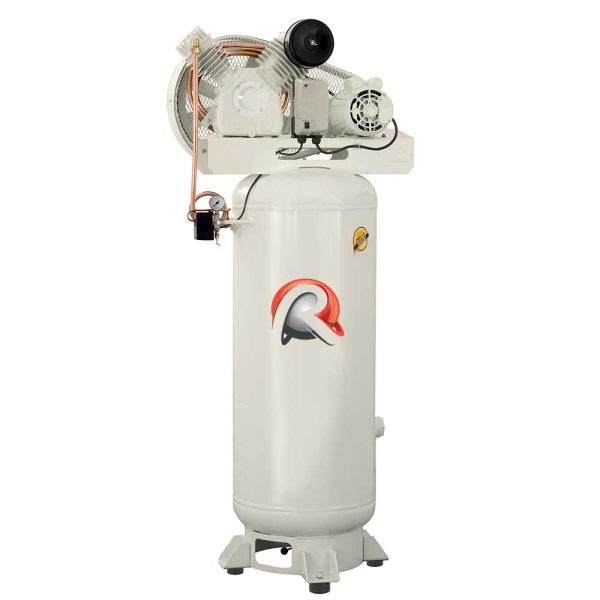

Vertical 3HP Two Stage OL-030-060V-V15

Oil Less
SKU: OL-035-060V-V15
Tags:

Description

Vertical 3HP Two Stage OL 035-060V-V15

The Oil Less compressors offer performance and safety for applications in clinics, offices or critical industrial processes. These products adhere to a higher air quality standard starting with their air tanks which have internal antibacterial powder coating. Available in 3, 5, 10 and 15 hp sizes, these compressors ensure durability. Choose the best product to support your business.

The Pump – Oil Less V15

Air Displacement (CFM)15
Air Displacement (l/min)425
Motor Power (hp)3
Motor Power (kW)2.25
Maximum Operating Pressure (bar)8.3
Maximum Operating Pressure (PSI)120
Minimum Operating Pressure (bar)5.5
Minimum Operating Pressure (psi)80
Compressor Unit – No. Stages2
Compressor Unit – No. Pistons2-V

Additional information

Weight 433 lbs
Dimensions 32.3 × 19.7 × 72.8 in
Air Displacement (CFM)

CFM @ Max PSI (FAD)

Motor Power (hp)

Maximum Operating Pressure (PSI)

Tank Orientation

Tank Size (gal)

Voltage (V)

Stages

Pistons

Pump RPM
