Description

Integrating into Resource Air’s compressed air filtration range, the Nimble Water Separator combines proven Nimble centrifugal technology with a new forward thinking housing design to deliver market leading water removal efficiencies – eliminating up to 99% bulk water with continuously low differential pressure.

The custom engineered centrifugal module features unique vanes to eliminate points of low efficiency, and a vortex arrestor to stop re-entrainment – ensuring minimal operating pressure loss and maintaining excellent liquid removal, even at low velocities.

No replacement components are required, making Resource Air’s Water Separators a viable and cost effective solution for removing bulk water from compressed air.

Energy Saving

Water Separators operate with consistently low differential pressure reducing both energy consumption and operating costs

Flexible Installation

Modular design and accessible fixings enable simple close coupling assembly

Cost Effective

No replacement components required

Externally Accessible Drain Valve

Drain valve can be removed externally on larger models

Corrosion Protection

Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating

Product Safety in Mind

Guaranteed safe housing closure with rotational safety stop

Unique Centrifugal Module

Removes 99% of bulk water even at low velocities.

Externally Accessible Drain Valve

Eliminates the need to access the inside of the filter housing when servicing the drain.

Modular Construction

Low cost connecting kits and new filter head design enables easy close coupling assembly.

Cost Effective

No replacement components required.

		Inlet flow rate*		Dimensions inches (mm)				Weight
Model	Connection Inches	SCFM	Nm³/hr	A	B	C	D	lbs	kg
NWS-0006-01250	1/8	6	10	1.97 (50)	0.67 (17)	6.18 (157)	2.36 (60)	0.6	0.3
NWS-0015-02500	1/4	15	25	1.97 (50)	0.67 (17)	6.18 (157)	2.36 (60)	0.6	0.3
NWS-0025-02500	1/4	25	42	2.76 (70)	0.91 (23)	9.09 (231)	2.76 (70)	1.3	0.6
NWS-0032-03750	3/8	35	54	2.76 (70)	0.91 (23)	9.09 (231)	2.76 (70)	1.3	0.6
NWS-0050-05000	1/2	50	85	2.76 (70)	0.91 (23)	9.09 (231)	2.76 (70)	1.3	0.6
NWS-0070-05000	1/2	70	119	5.00 (127)	1.26 (32)	11.22 (285)	3.15 (80)	3.7	1.7
NWS-0125-07500	3/4	125	212	5.00 (127)	1.26 (32)	14.57 (370)	3.15 (80)	3.7	1.7
NWS-0175-10000	1	175	297	5.00 (127)	1.26 (32)	14.57 (370)	3.15 (80)	3.7	1.7
NWS-0280-12500	1 1/4	280	476	5.51 (140)	1.61 (41)	18.74 (476)	3.35 (85)	6.6	3.0
NWS-0320-15000	1 1/2	320	544	5.51 (140)	1.61 (41)	18.74 (476)	3.35 (85)	6.6	3.0
NWS-0400-15000	1 1/2	400	680	6.69 (170)	2.08 (53)	20.00 (508)	3.94 (100)	10.8	4.9
NWS-0700-20000	2	700	1189	6.69 (170)	2.08 (53)	27.87 (708)	3.94 (100)	10.8	4.9
NWS-0850-25000	2 1/2	850	1444	8.66 (220)	2.75 (70)	16.54 (420)	3.94 (100)	17.6	8.0
NWS-1500-30000	3	1500	2550	8.66 (220)	2.75 (70)	16.54 (420)	3.94 (100)	17.6	8.0

Grade	WS
Minimum recommended operating temperature – automatic drain	34ºF	1ºC
Maximum recommended operating temperature – automatic drain	176ºF	80ºC
Maximum working pressure – automatic drain	232 psig	16 barg
Minimum recommended operating temperature – manual drain	34ºF	1ºC
Maximum recommended operating temperature – manual drain	248ºF	120ºC
Maximum working pressure – manual drain	300 psig	20.7 barg
Typical pressure loss at rated flow	0.8 psi	55 mbar

Technical Notes

Water Separators are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models NWS-0006-01250 to NWS-0050-05000 and ADVSE16 on models NWS-0070-05000 to NWS-1500-30000. Standard filters can operate at 232 psig (16 barg) at 176°F (80°C).
Connecting kits are required to connect Water Separators to filter models
Wall mounting brackets are available for all models
Standard threaded connections are NPT to ANSI/ASME B1.20.1.

Additional information

Weight	1.1 lbs
Dimensions	2.76 × 2.76 × 7.44 in
Filter CFM	25
Filter Connection (in)	0.25
Filter PSI	232

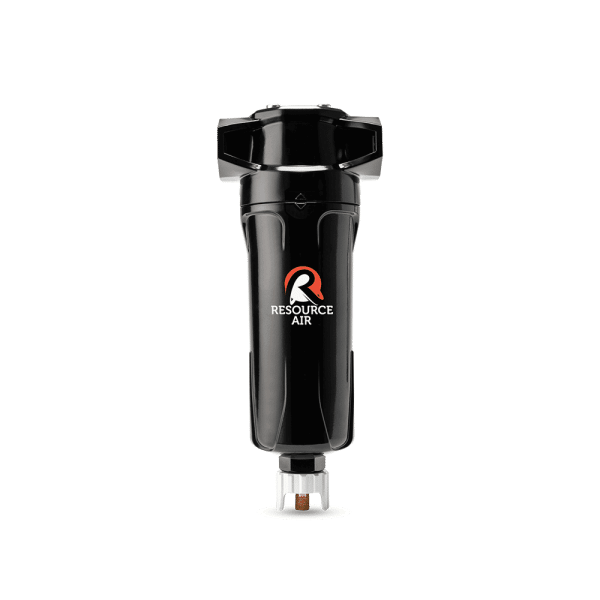

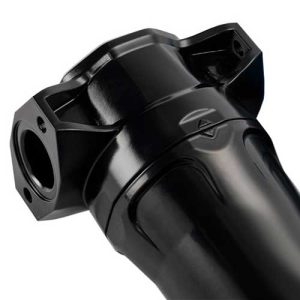

Water Separator 25 CFM – 1/4 In Connection
