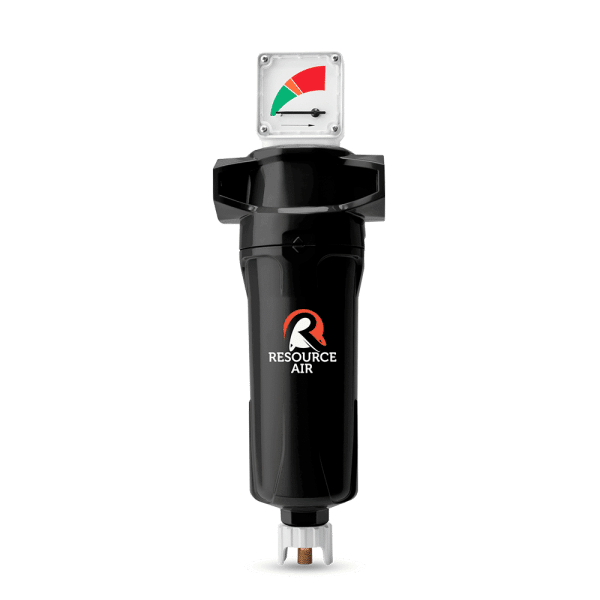

Particulate Filter 400 CFM - 1 1/2 In Connection Particulate Filter 400 CFM - 1 1/2 In Connection
Particulate Filter 400 CFM - 1 1/2 In Connection
Particulate Filter 400 CFM - 1 1/2 In Connection

Particulate Filter 400 CFM – 1 1/2 In Connection

Particulate Filters
SKU: NP-0400-15000-XXX
Tags:

Description

The Nimble Filtration range of market leading compressed air and gas filters. With enhanced housing features and a step change in element performance, the Nimble delivers a high quality filtration solution you can trust.

Offered in a range of 18 models with connection sizes ranging from 1/8″ to 3″, the Nimble Series has been tested to provide a saturated differential pressure of <1.8 psi (125 mbar) across X1 and XA grades – proving to be our most advanced filter to date.

With class leading performance and exceptional results in oil aerosol and particle retention, Nimble Compressed Air Filters deliver significantly reduced pressure loss and optimum filtration efficiencies – to ensure continually low operational costs.

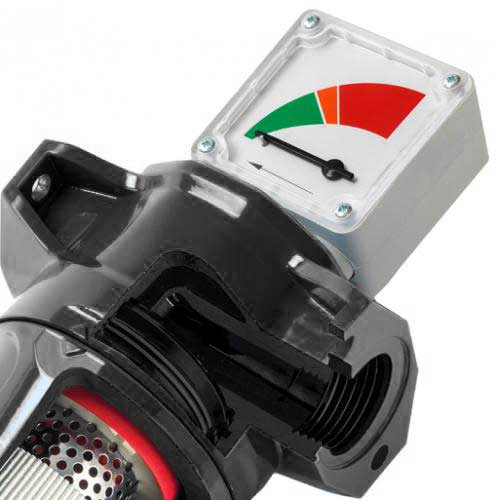

Flow-Optimized Design
Advanced filter head design for optimized flow performance
Flexible Installation
Modular design and accessible fixings enable simple close coupling assembly
Market Leading Performance
Custom engineered filtration media delivers optimum performance in line with air quality standard ISO 8573-1: 2010
Simplified Serviceability
Externally accessible drain, profiled bowl design and unique push fit elements ensure quick and reliable maintenance
Corrosion Protection
Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating
Color Coded Element End Caps
Easy and accurate grade identification
Product Safety in Mind
Guaranteed safe housing closure with rotational safety stop

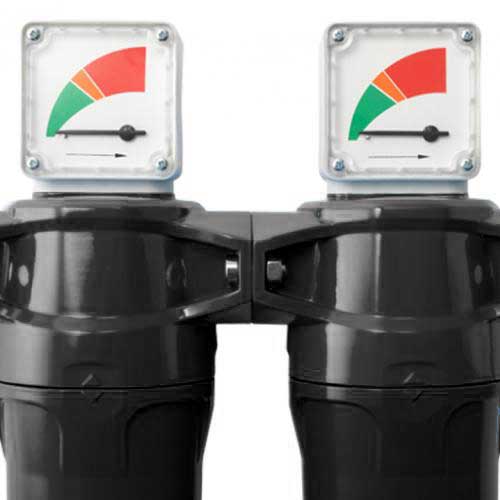

Modular Filter

Low cost connecting kits and new filter head design enable easy close coupling assembly.

Filtration Technology
Deep pleated media technology delivers a step change in performance.
Externally Accessible Drain
Eliminates the need to access the inside of the filter housing when servicing the drain.
Market Leading Performance
Custom engineered filtration media delivers optimum performance in line with air quality standard ISO 8573-1: 2010.
Corrosion Protection
Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating.
Color coded element end caps
Easy and accurate grade identification.

Filter Element Specifications

Grade C500 C100 C001 AC
Particle removal 5 micron 1 micron 0.01 micron 0.01 micron
Maximum particle size class** 4 3 1 1
Maximum oil content** 4 3 1 1
Maximum oil carryover at 68°F (20°C) 5 ppm 5 mg/m³ 0.3 ppm 0.3 mg/m³ 0.01ppm 0.01 mg/m³ 0.003 ppm 0.003 mg/ m³
Pressure loss – clean & dry 0.6 psi 40 mbar 0.8 psi 55 mbar 1.2 psi 85 mbar 1.7 psi 115 mbar
Pressure loss – saturated 1.1 psi 75 mbar 1.8 psi 125 mbar 1.8 psi 125 mbar N/A N/A
Pressure loss – element change 12 mths 8000 hrs 8000 hrs 12 mths 8000 hrs 12 mths at least every 6 mths
Maximum temperature – automatic drain 176°F 80°C 176°F 80°C 176°F 80°C 122°F*** 50°C***
Maximum working pressure – automatic drain 232 psig 16 barg 232 psig 16 barg 232 psig 16 barg 232 psig 16 barg
Maximum temperature – manual drain 248°F 120°C 248°F 120°C 248°F 120°C 122°F*** 50°C***
Maximum working pressure – manual drain 300 psig 20.7 barg 300 psig 20.7 barg 300 psig 20.7 barg 300 psig 20.7 barg
Element end cap colour Green Red Blue Black
** to ISO 8573-1: 2010
*** Maximum recommended operating temperature 77ºF (25ºC)

Filter Model Specifications

Dimensions Inches (mm)
Model Connection Inches SCFM Nm³/hr A B C D lbs kg Element
NC-0006-01250 (grade) 1/8 6 10 1.97 (50) 0.67 (17) 6.18 (157) 2.36 (60) 0.7 0.3 R96962 (grade)
NC-0015-02500 (grade) 1/4 15 25 1.97 (50) 0.67 (17) 6.18 (157) 2.36 (60) 0.7 0.3 R96962 (grade)
NC-0025-02500 (grade) 1/4 25 42 2.76 (70) 0.91 (23) 7.44 (189) 2.76 (70) 1.1 0.5 R96064 (grade)
NC-0032-03750 (grade) 3/8 32 54 2.76 (70) 0.91 (23) 7.44 (189) 2.76 (70) 1.1 0.5 R96064 (grade)
NC-0050-05000 (grade) 1/2 50 85 2.76 (70) 0.91 (23) 9.09 (231) 2.76 (70) 1.3 0.6 R96078 (grade)
NC-0070-05000 (grade) 1/2 70 119 5.00 (127) 1.26 (32) 11.22 (285) 3.15 (80) 3.7 1.7 R96278 (grade)
NC-0085-07500 (grade) 3/4 85 144 5.00 (127) 1.26 (32) 11.22 (285) 3.15 (80) 3.7 1.7 R96278 (grade)
NC-0105-10000 (grade) 1 105 178 5.00 (127) 1.26 (32) 11.22 (285) 3.15 (80) 3.7 1.7 R96278 (grade)
NC-0125-07500 (grade) 3/4 125 212 5.00 (127) 1.26 (32) 14.57 (370) 3.15 (80) 4.4 2.0 R96287 (grade)
NC-0175-10000 (grade) 1 175 297 5.00 (127) 1.26 (32) 14.57 (370) 3.15 (80) 4.4 2.0 R96287 (grade)
NC-0280-12500 (grade) 1 1/4 280 476 5.51 (140) 1.61 (41) 18.74 (476) 3.35 (85) 6.6 3.0 R96397 (grade)
NC-0320-15000 (grade) 1 1/2 320 544 5.51 (140) 1.61 (41) 18.74 (476) 3.35 (85) 6.6 3.0 R96397 (grade)
NC-0400-15000 (grade) 1 1/2 400 680 6.69 (170) 2.08 (53) 20.00 (508) 3.94 (100) 10.8 4.9 R96497 (grade)
NC-0450-20000 (grade) 2 450 765 6.69 (170) 2.08 (53) 20.00 (508) 3.94 (100) 10.8 4.9 R96497 (grade)
NC-0700-20000 (grade) 2 700 1189 6.69 (170) 2.08 (53) 27.87 (708) 3.94 (100) 12.1 5.5 R96416 (grade)
NC-0850-25000 (grade) 2 1/2 850 1444 8.66 (220) 2.75 (70) 28.97 (736) 3.94 (100) 23.1 10.5 R97706 (grade)
NC-0900-30000 (grade) 3 900 1529 8.66 (220) 2.75 (70) 28.97 (736) 3.94 (100) 23.1 10.5 R97706 (grade)
NC-1250-30000 (grade) 3 1250 2125 8.66 (220) 2.75 (70) 33.74 (857) 3.94 (100) 25.4 11.5 R97726 (grade)
NC-1500-30000 (grade) 3 1500 2550 8.66 (220) 2.75 (70) 39.56 (1005) 3.94 (100) 27.6 12.5 R97731 (grade)
*Rated flow at 100 psig (7 barg), reference conditions at 14.5 psi (a) (1 bar (a)) 35ºF (20ºC)
Pressure correction factors For maximum flow rate, multiply model flow rate by the correction factor corresponding to the minimum operating pressure
Operating pressure psig (barg) 58 (4) 72 (5) 87 (6) 100 (7) 115 (8) 145 (10) 174 (12) 203 (14) 232 (16) 300 (20.7)
100 psig – correction factor 0.76 0.84 0.92 1.00 1.07 1.19 1.31 1.41 1.51 1.73

Technical notes

  1. Direction of air flow is inside to out through the filter element.
  2. Pop up indicators (65DPUG3) are fitted to models NC-0006-01250 to NC-0050-05000 as standard. Differential pressure indicators (65DPIG) are fitted to models NC-0070-05000 to NC-1500-30000 as standard. Activated Carbon (AC) grade filters do not include DP equipment.
  3. Coalescing Filters are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models NC-0006-01250 to NC-0050-05000 and ADVSE16 on models NC-0070-05000 to NC-1500-30000, and manual drain valves on Activated Carbon Filters. Standard filters can operate at 232 psig (16 barg ) at 176°F (80°C). Normally closed operated automatic drain valves (ADVS16C) are available for low range flow applications (2.5 SCFM, 4.2 Nm3 /hr or lower). 300 psig (20.7 barg) range at 248°F (120°C) available when supplied with a manual drain valve (MDV25 on models NC-0006-01250 to NC-0050-05000 and MDVE25 on models NC-0070-05000 to NC-1500-30000).
  4. Activated Carbon Filters must not operate in oil saturated conditions and will not remove certain types of gases including carbon monoxide (CO) and carbon dioxide (CO2).
  5. Alpha Filters are manufactured from cast aluminum alloy and are PED 2014/68/EU compliant for group 2 gases.
  6. Standard threaded connections are NPT to ANSI/ASME B1.20.1.
  7. Filters are suitable for use with mineral and synthetic oils plus, oil-free compressed air applications.

Additional information

Weight 10.8 lbs
Dimensions 6.69 × 6.69 × 20 in
Filter CFM

Filter Connection (in)

Filter Micron

, , ,

Filter PSI
